Full Height Rotating Turnstile For Card Swiping Bidirectional Passage
Product Overview
The Kemaisi full height rotating turnstile features a high door body made of 1.5 mm thick SUS304 stainless steel and supports bidirectional passage via card swiping. We offer custom appearance design according to customer requirements, with precision sheet metal processing capability that transforms designs into reality.
The core mechanism is designed in-house and has been granted multiple national structural invention patents, ensuring stable and reliable performance. In power failure situations, the turnstile automatically opens to form a free passage safety channel, complying with fire evacuation requirements.
Key Features & Advantages
- Robust Material & Customizable Appearance: Constructed from 1.5 mm thick SUS304 stainless steel for high structural strength and corrosion resistance. Supports custom appearance design with precision sheet metal processing.
- Patented Mechanism: Self-developed core mechanism with multiple national structural invention patents ensures stable operation and reliable long-term performance.
- Power Failure Safety Protection: Automatically opens during power failure to create an unobstructed safety passage for emergency evacuation, complying with fire safety regulations.
- High Security & Unattended Operation: Full-height enclosed structure effectively prevents climbing and scaling, eliminating the need for dedicated guards and reducing labor costs.
- Intelligent Barrier Arm Control: Barrier arm remains locked until valid signal reception, preventing unauthorized entry. Automatically returns to zero and locks after authorized passage.
- Standard Interfaces & Flexible Integration: Equipped with standard input/output interfaces for easy connection to various access control devices including facial recognition, card swiping, and QR code readers.
Technical Specifications
| Product Name |
Full Height Turnstile Gate |
| Protection Grade |
IP43, IP54 |
| Communication Interface |
I/O, RS485 |
| Traffic Speed |
30 People/Minute |
| Pass Width |
600mm+900mm |
| Rotation Angle Per Step |
120° |
| Barrier Material |
304 Stainless Steel Round Tube / 201 Stainless Steel With Baked Paint |
| Passage Frame |
304 Stainless Steel / 201 Stainless Steel With Baked Paint |

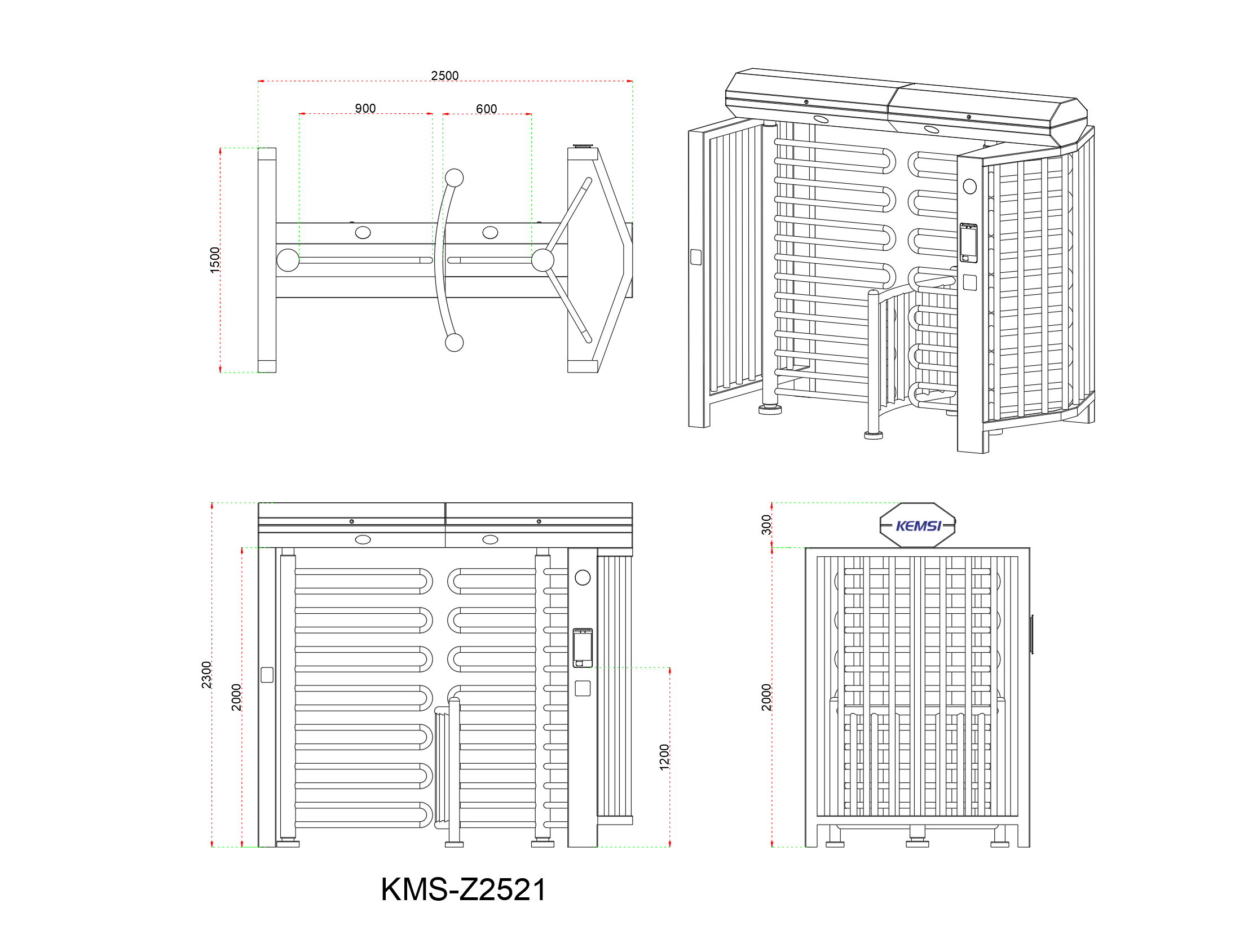

| Product Size |
2500mm*1500mm*2300mm |
| Working Voltage |
220V±10% |
| Ambient Temperature |
-20℃-65℃ |
| Relative Humidity |
≤95% Not Condensing |
| Work Environment |
Indoor and Outdoor |
| Product Power |
50W |
| Access Control Type |
RFID/IC/ID Card, Face/Iris Recognition, Fingerprint Identification, QR Code, Mobile Phone/NFC, Password, Remote Door Opening |
| Communication Interface |
Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
Frequently Asked Questions
What is a full height turnstile gate?
A full height turnstile gate is a high-security pedestrian access control barrier that uses full-height rotating arms to prevent unauthorized entry. It is commonly used in places requiring strict security management.
What is the difference between a full height turnstile and a tripod turnstile?
A tripod turnstile only controls access at waist height, while a full height turnstile provides a complete barrier that prevents climbing over or bypassing, making it more suitable for high-security environments.
Can this turnstile work with facial recognition systems?
Yes. The full height turnstile supports integration with facial recognition, fingerprint scanners, RFID readers, QR code systems, and other access control technologies.
Is this turnstile suitable for outdoor use?
Yes. With a durable stainless steel structure and weather-resistant design, it can be installed in outdoor environments such as stadium entrances, factories, and construction sites.
How many people can pass through the turnstile?
The traffic capacity depends on the model and access management settings. It is designed for continuous pedestrian flow in high-volume applications.
Does the turnstile support emergency opening?
Yes. The system can be connected with fire alarm systems and emergency controls to allow rapid evacuation when required.
Why Choose Our Full Height Turnstile Gate?
Choosing the right pedestrian security gate is essential for protecting your facility. Our full height turnstile system combines mechanical strength, smart access control compatibility, and reliable performance to deliver a professional security entrance solution.
Whether you need access control for a factory, stadium, government building, transportation station, or restricted facility, this high-security turnstile provides an effective way to manage pedestrian access.
